LoFi Audio Amplifier Assembly Instructions

Welcome to the LoFi Audio Amplifier Assembly Instructions!  This build is fairly simple and straightforward, so let’s get started!

BOM Layout

The first step in any successful electronics project is to make sure that you have all of the parts to construct the circuit.  Check your kit parts against the LoFi Amplifier BOM.  If you’re missing anything, we’ll send it to you free of charge

Alright, now that we have everything we need, let’s get started assembling the LoFi Amplifier circuit.

PCB Components

IC/Resistor

Orient the PCB so that it matches the picture above.  Insert the IC into the PCB at the IC1 position.  You may have to gently squeeze the leads of the IC inward in order to get it to fit onto the PCB.  Be careful!

There is only one resistor for this circuit  Insert it into the PCB and solder both the IC and resistor to the PCB.

Capacitors

There are five capacitors for this circuit.  C1 and C2 are 10μF non-polar ceramic capacitors.  You do not have to worry about which lead goes into which hole with non-polar components.  If you want to use polarized electrolytic capacitors (like C5) in your circuit, take care to identify the positive lead and insert it into the square through-hole with a a’+’ next to it.

C3 is a 0.1μF ceramic capacitor and C4 is a 0.05μF ceramic capacitor.  Just like C1 and C2, you don’t have to worry about polarity with these components.  Just place them into their through-holes and the circuit will work fine.

C5 is a fairly large 220μF electrolytic capacitor.  Take note of the black band on C5 in the picture above.  The lead that is closest to this band is the negative lead.  If the capacitor is new, the longer lead will be the positive lead.  On the PCB, insert the positive lead into the square through-hole marked with a ‘+’.  Insert the negative lead into the circle through-hole.

That’s all of the on-board components.  We’re halfway done!

Wired Components

Volume Potentiometer/9V Battery Jack

We’ll start with the 9V battery jack.  Insert the red wire into the PCB through-hole marked ‘+’ and the black wire into the through-hole marked ‘-’.  That’s it.

The volume potentiometer is a little bit more involved.

On the PCB, the silkscreen identifier for POT1 has numbers near the outer through-holes.  These correspond to the potentiometer’s solder lugs.

When you are attaching the potentiometer to the PCB, make sure the right wires go to the right through-holes based off the above picture.

DC Jack

The DC jack, when wired properly, allows you to keep a 9V battery connected to your circuit while only using the power from a wall wart.  Your battery will not be drained, which is a good thing considering how expensive 9V batteries can be.  When you unplug from the DC Jack, the 9V battery will kick into action and power the circuit.

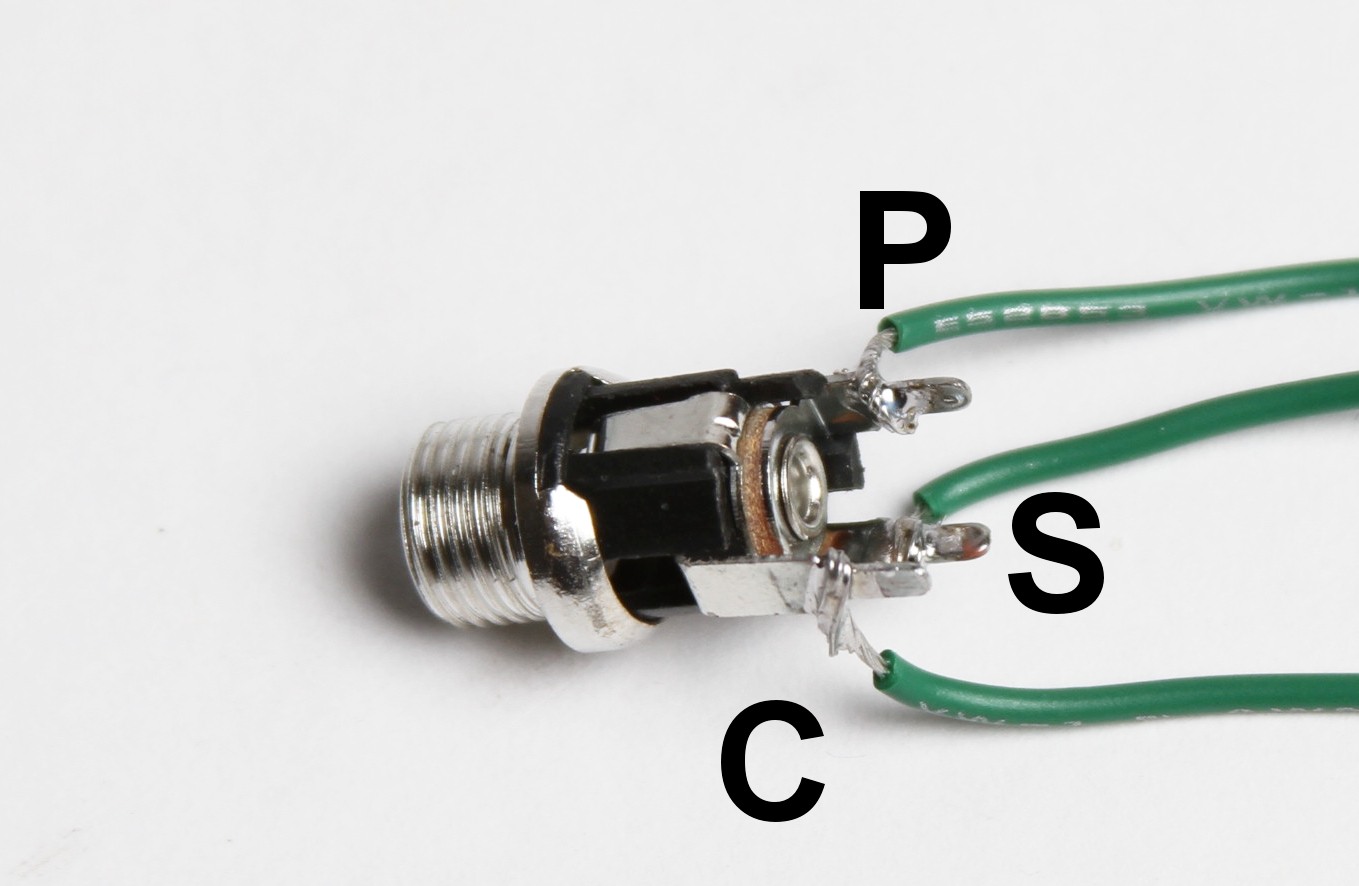

Solder three wires to the DC Jack’s solder lugs and connect them to the PCB at their corresponding ‘DC Jack’ through-holes.

Audio Jack/Speaker

One of the best features about this LoFi Amplifier is that it will not draw power unless something is plugged into the input.  We accomplish this by using a stereo jack.  When you insert a mono plug into the stereo jack, the circuit is completed and the signal will be amplified.

If you are not familiar with stereo jacks, here’s a picture to help you identify the connections:

There is a solder lug under the top connection.  This will not be used in the circuit.

On the PCB at the ‘IN’ connection, there are three letters that correspond to the stereo jack connections: ‘T’ for Tip, ‘R’ for Ring, and ‘S’ for sleeve.  Connect the stereo jack to the PCB with wire.

The last component to be added to our circuit is the 8Ω speaker.  At the ‘OUT’ PCB position, there are two through-holes.  Connect one wire from a solder lug on the speaker to the PCB and repeat for the other.  It does not matter which hole goes where, as speakers aren’t polar components.

Congratulations, you’ve finished building the LoFi Amplifier circuit!
