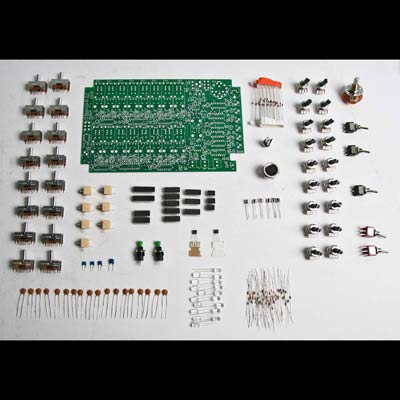

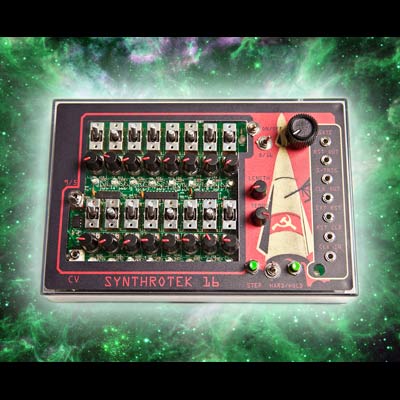

16 Step Analog Sequencer

Features:
- 16 adjustable steps – On, Off, or Hold-Through to retain the last step’s potentiometer-set value for longer CV times. – Sequence length can be adjusted from 1-16 steps. The 16 Step Sequencer can be shortened to 8 steps with the flip of a toggle switch. The 8 Step Switch allows you to further shorten your sequence from 1-8 or 9-16.
- On, Hold-Through, and Off functions per step
- Gate and S-Trig outputs (for Moog synths)
- CV OUT switchable between 5V and 9V
- Clock IN/OUT to sync with other sequencers or clock-generating sources
- Reset sync for connecting multiple sequencers
- LED indication per step
- Variable Gate/S-Trig length output (staccato to full step duration)
- Momentary and Hard (Stop) Hold function to pause for tuning each step, allowing for precise CV output.
- Knobs and Switches – get your hands on it!

Assembly Instructions

Bill of Materials
