3PDT Stomp Switch

We’ll use the Fuzz Face PCB as an example, but all Synthrotek PC Boards with 3PDT switches can be wired in the same way.

Synthrotek



Line up the number code from the switch to the board exactly how it is labeled in the picture (above and below.)

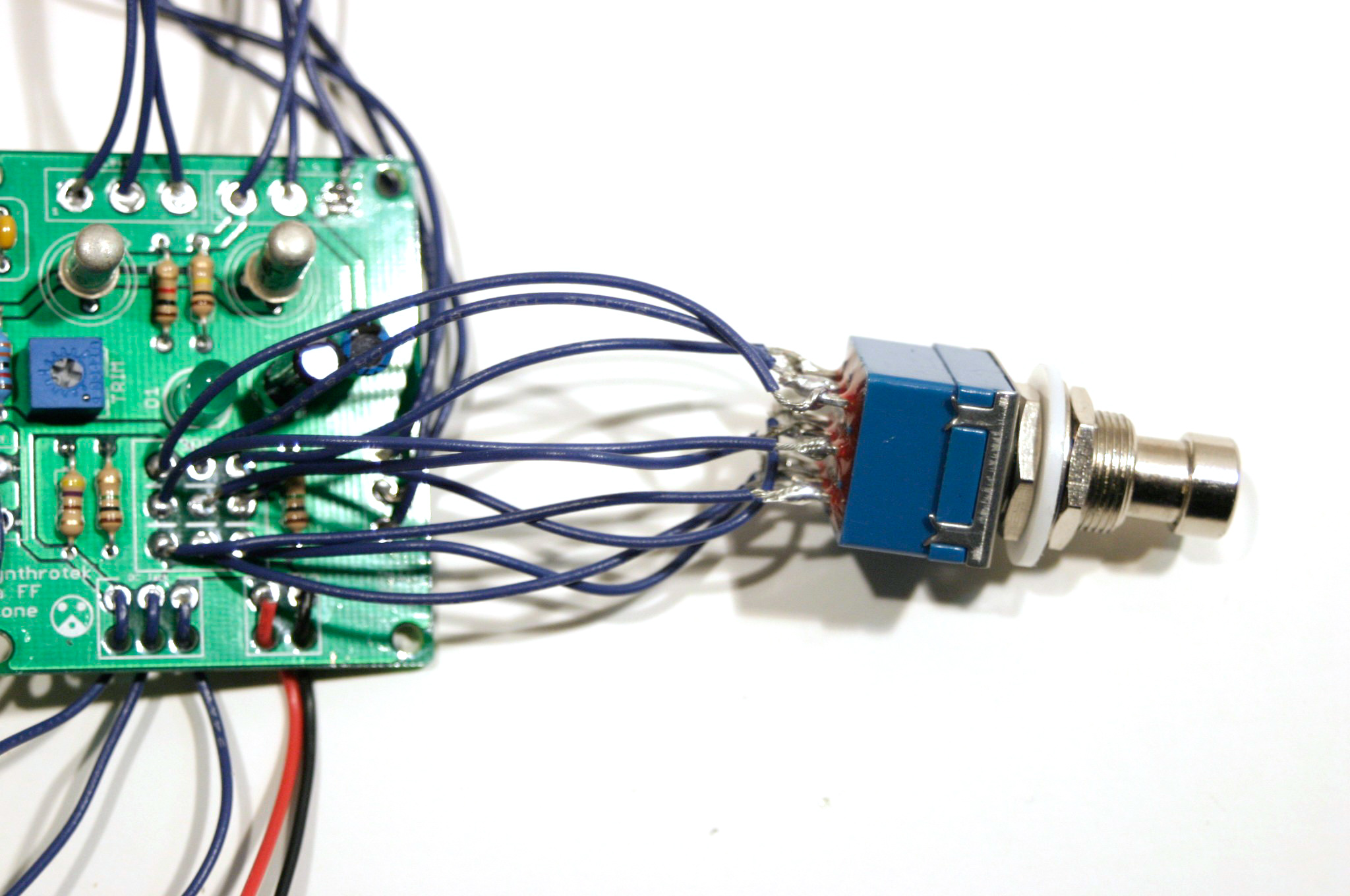

Make sure the flat blue side of the stomp switch is facing up when comparing it to the picture below.

Synthrotek

Synthrotek

Sweet!

DPDT Stomp Switch

Here we are using the L0-Fi Fuzz Distortion Pedal as an example.

Synthrotek

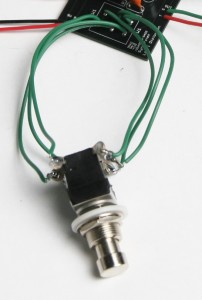

Align the DPDT switch’s solder lugs with the PCB through-holes.  This is how the wires will be attached to the PCB.
