PT2399 L0-Fi Delay

Features:

The PT2399 Delay is a great way to get some delay! Put it in a nice rugged Hammond enclosure and you’ve got an awesome delay pedal!

Features:

• 3 controls – Delay Length, Mix, and Feedback – to customize your sound. Delay Length adjust your delay from fast slapback echo to long dub-style repeats, Mix allows you to set the wet/dry portions of the signal, Feedback gives you total control over the number of repeats, even allowing infinite repeats.
• Buffered input and outputs featuring NE5532 low noise op amps
• The PT2399 Echo IC was designed to mimic old-school analog BBD delay with modern digital sampling technology. Repeats degrade at higher delay lengths, resulting is a very natural well-filtered reproduction of your synth/guitar tone.
• Dual power supplies (9V Battery and +9VDC =>200mA Center Negative DC Adapter Power Supplies) allow you to have the battery as backup or as the main power supply.
• Input jack switching – No instrument cable plugged in, no power used. Save life on your expensive batteries!

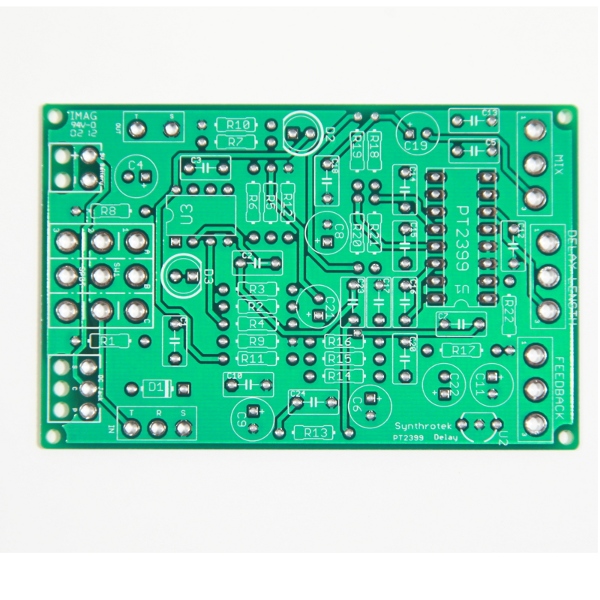

• PCBs are professionally manufactured in the USA by Imagineering, based out of Elk Grove Village, IL, and designed here at Synthrotek. PCB silkscreen, through-hole components with careful on-board placement, and wire-tension relief holes were designed with the DIYer in mind!
• PCB Dimensions: 3.125″ x 2″
• Great for synths and guitars! Easy to configure and mod your circuit for a greater delay range, delay length modulation, and a lot more!
• Console or stomp box version
