EcoSkiff Assembly

Thank you for purchasing the Synthrotek EcoSkiff! This is an easy build, all you need is a Phillips screwdriver.

SLIDE NUTS

The number of slide nuts that you will receive will vary depending on the size of the case.

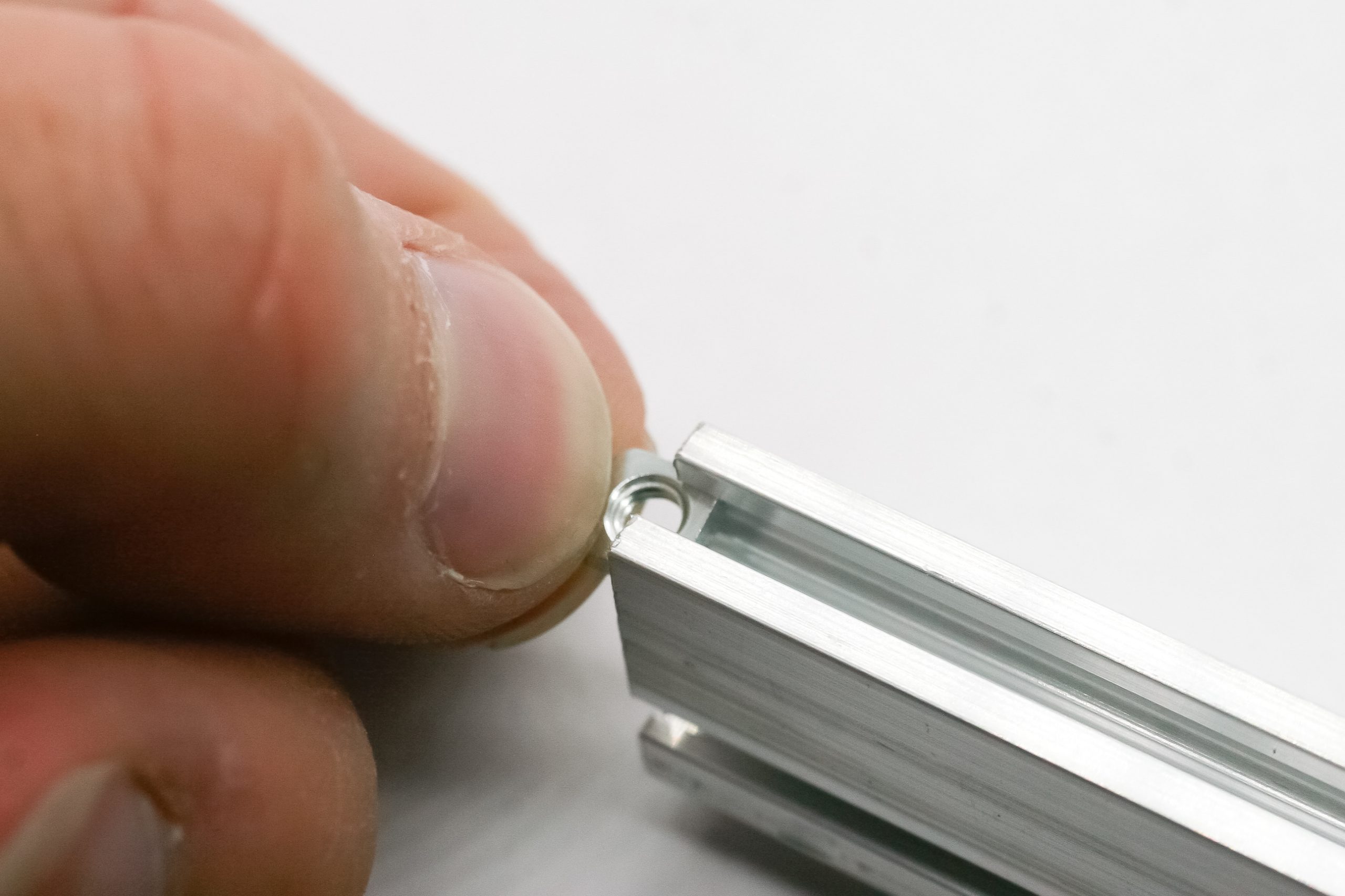

Insert enough slide nuts into two of the rails so that you can mount the blank panels/power supply in the bottom of the case.

Distribute the remaining slide nuts between the two remaining rails. These rails will be used to mount your modules.

EcoSkiff Slide Nuts

Blank Panels for Assembly

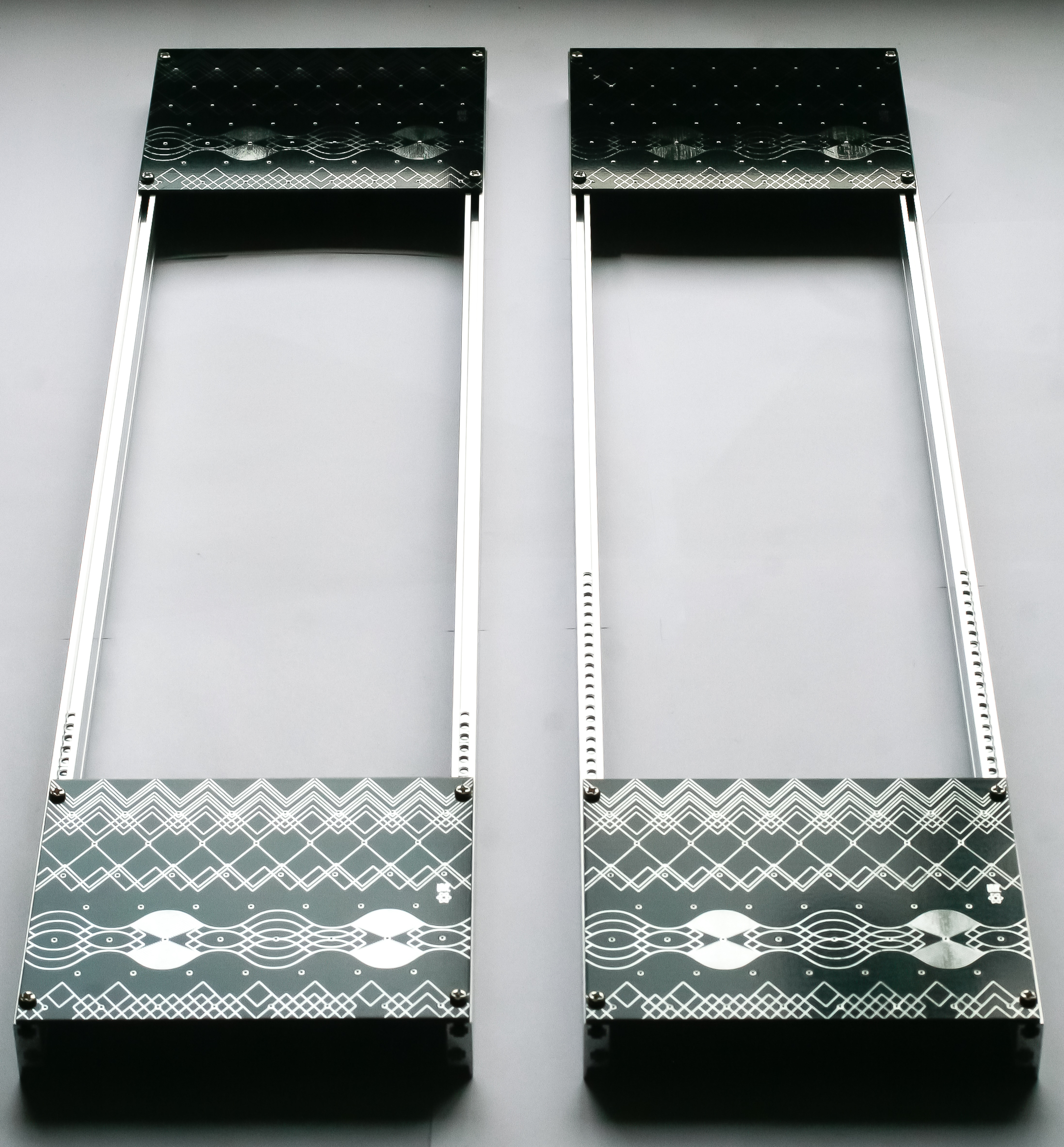

Temporarily mount a couple blank panels and as shown below. This will make it easy to connect the rail sets to the cheeks.

EcoSkiff Assembly 1

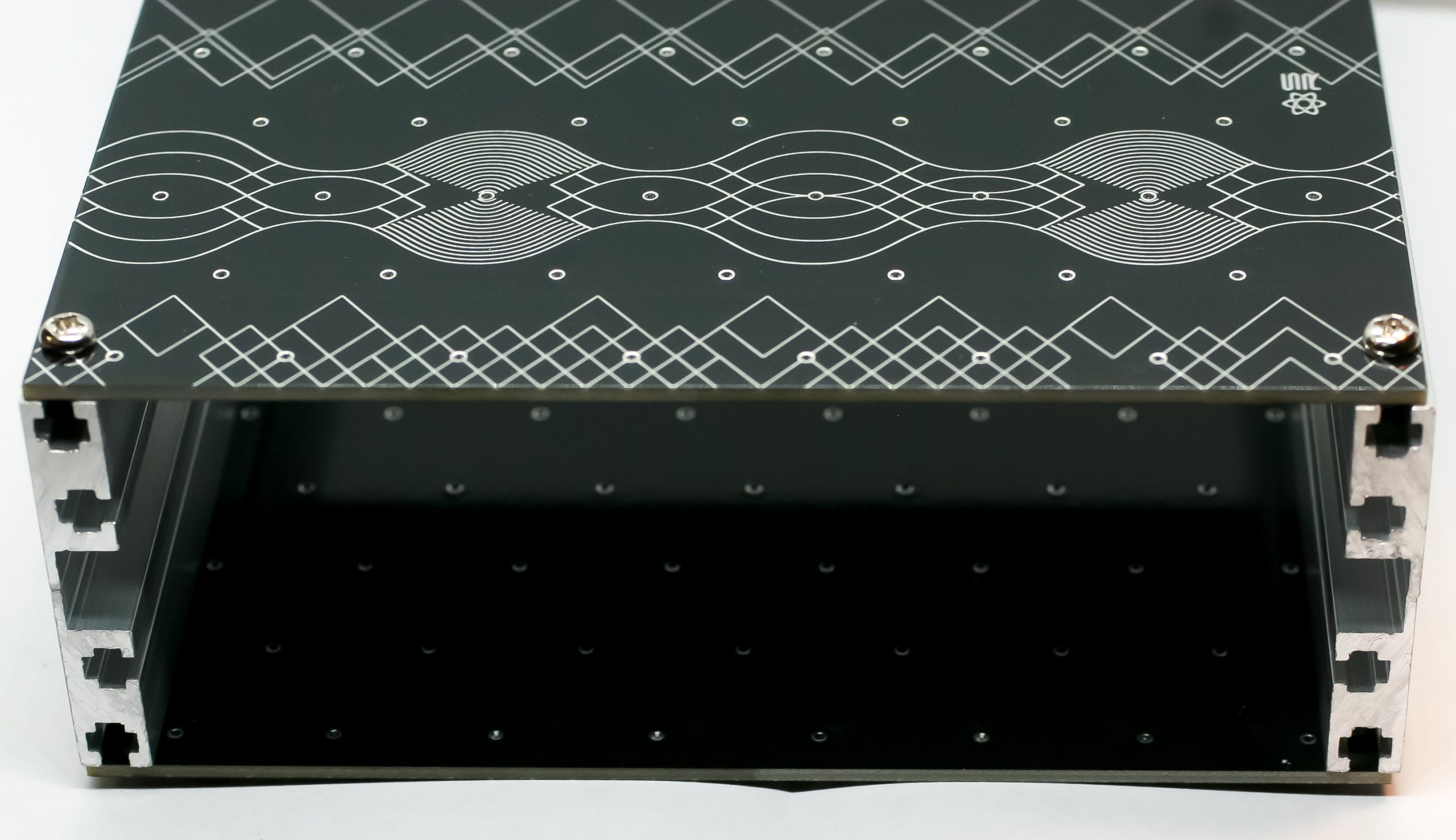

Stacking Both Sides

EcoSkiff Assembly 2

Attaching Cheeks

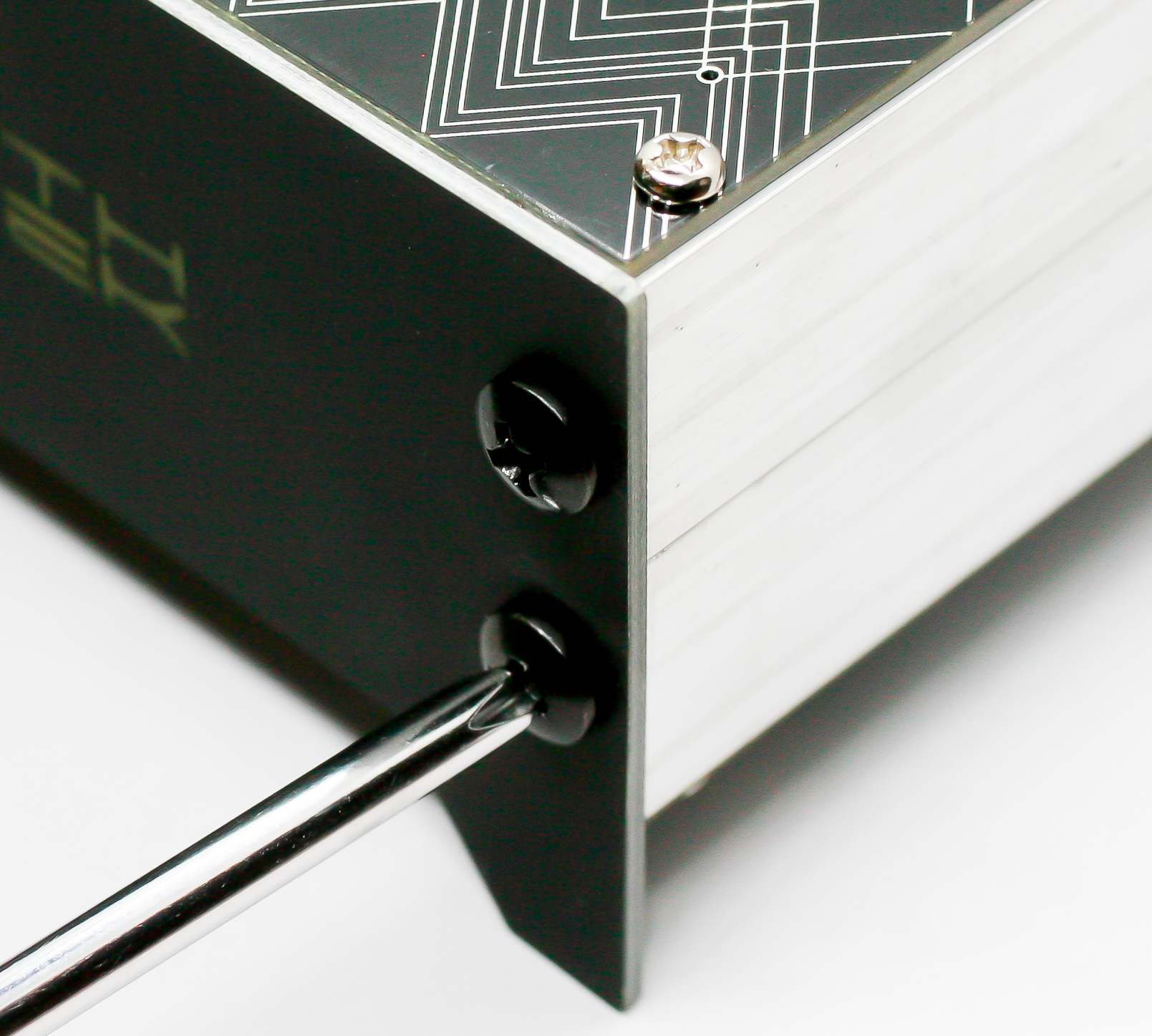

Attach the cheeks to both sides of the rails using the Phillips screws as shown below.  The screws are self-threading, so you will need to push just a little when you first start screwing them in.

Remove the blank panels from the top and mount them on the bottom.  We recommend mounting the power supply in the center. All finished!

EcoSkiff Cheeks Assembly

Final Assembly

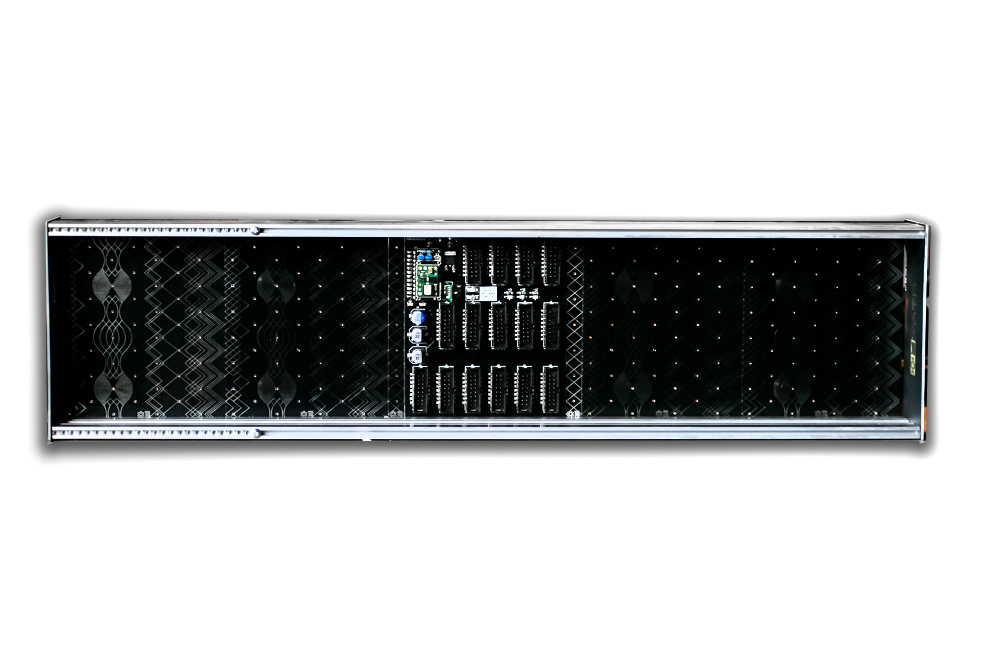

EcoPower with Skiff Power
