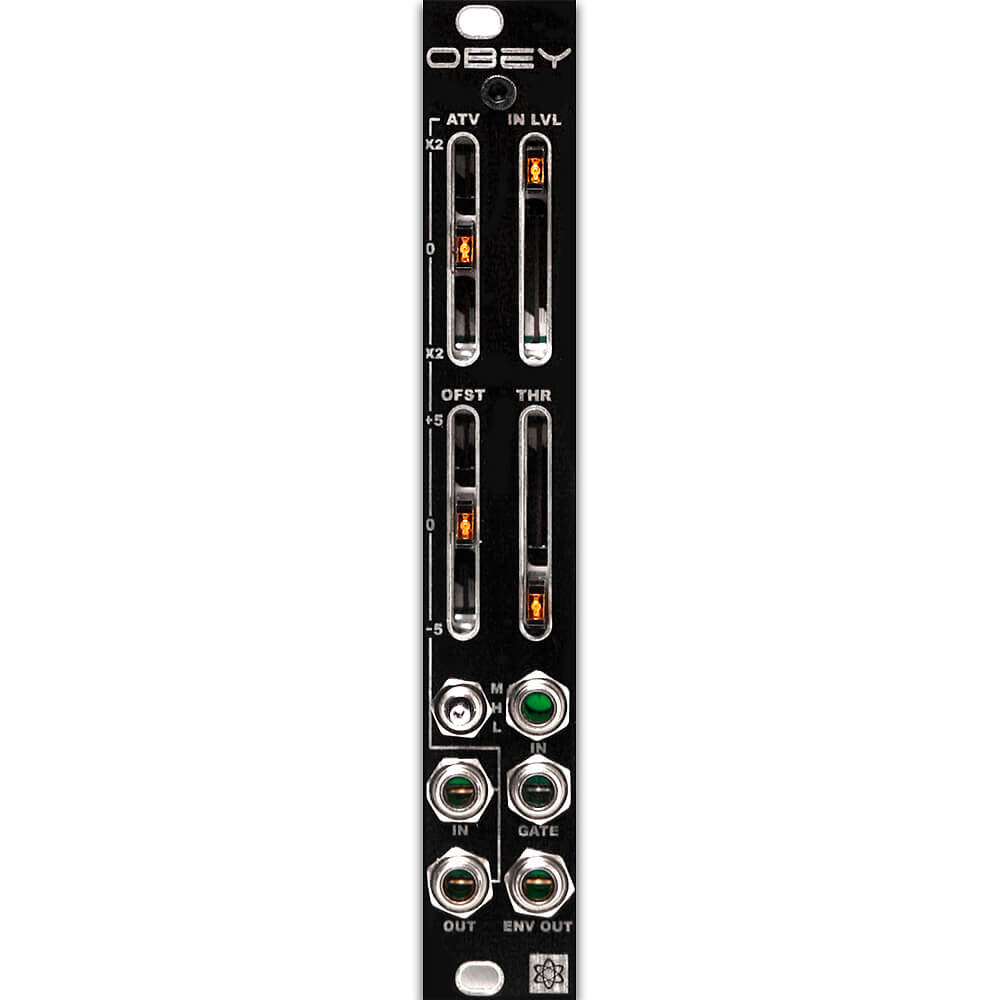

OBEY is a dual-function module: one half envelope follower and one half attenuverter / offset generator.
The OBEY takes an audio or CV signal and uses it to trigger an envelope or gate for use in a Eurorack system. It is designed to work with a wide variety of input levels: plug a Eurorack module, passive microphone, piezo, guitar, drum machine, Game Boy into your Eurorack system.
Attenuverter / Offset Generator:
Attenuvert your voltage sources up to two times in the positive or negative! The offset generator provides up to 5 volts in the positive or negative.
- Module width: 4HP
- Module depth: 48mm
- Current draw:
- +12V: 25mA
- -12V: 18mA
