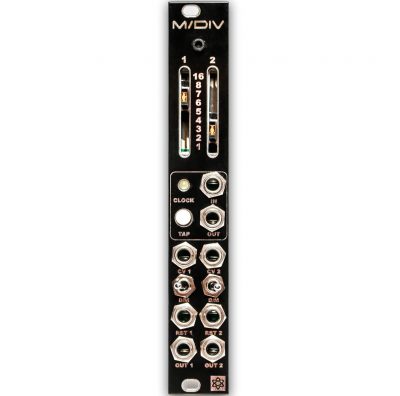

M/DIV

The M/DIV is a CV-controlled dual clock multiplier/divider with tap tempo, ideal for complex generative patching, sequencer timing and unique rhythm generation. The M/DIV has three clock outputs: a master clock and two multiplied or divided clocks. Each channel can do either multiplication or division with the flip of a switch.

Features:

  • Two clock channels, each capable of multiplying and dividing clocks
  • 1, 2, 3, 4, 5, 6, 7, 8 or 16 multiplications/divisions
  • Tap tempo
  • Master clock input and output
  • CV over number of multiplications/divisions
  • Clock reset jack

Specifications:

  • Width: 4HP
  • Depth: 55mm
  • Current draw:
    • +12V: 28mA
    • -12V: 2mA
