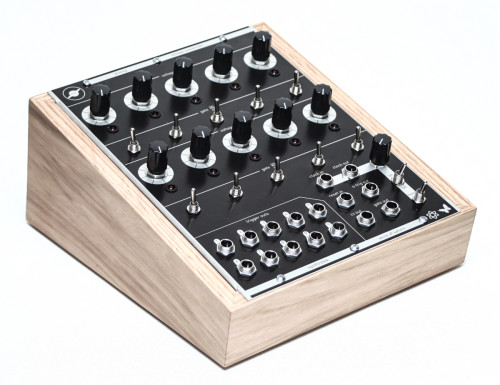

Voice of Saturn 5U Sequencer w/ optional case

Voice of Saturn Analog 10 Step Sequencer w/ 5U Panel

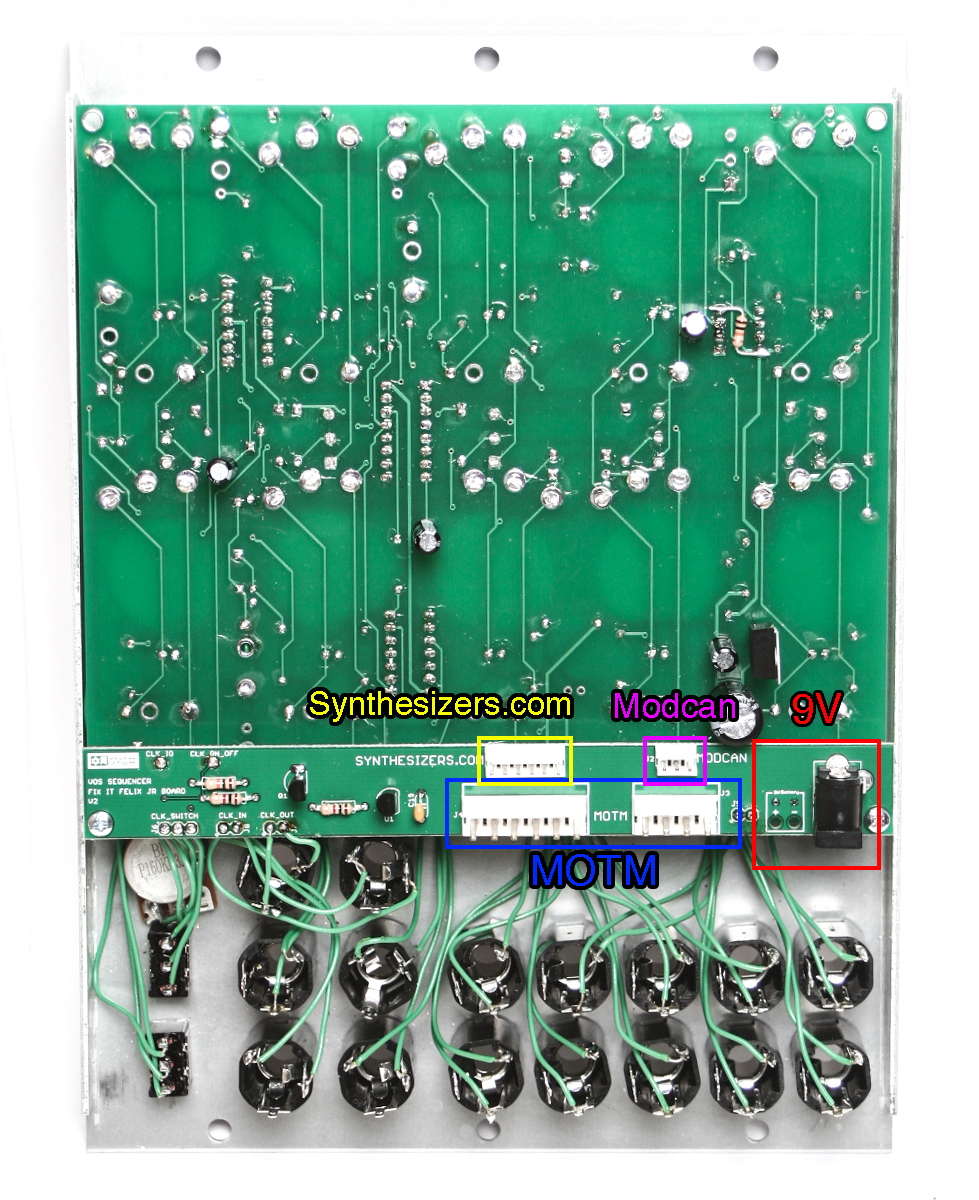

Voice of Saturn 5U Rear with optional power connections

Synthrotek is proud to be exclusively carrying the Voice of Saturn 10 step analog sequencer, which steps through 10 different voltage levels that are set by 10 potentiometers. The output control voltage and gates (10, one pre step) signals are typically used to control pitch, filters, drum triggers and an endless number of other parameters on other synths. The VOS Sequencer can be built as a kit to put in your own enclosure, or it can be purchased fully completed by Synthrotek staff.  We also have a 5U Modular Synthesizer Panel that can be built as a kit or be purchased fully completed as well.  An optional 5U Case (which takes a 9V Center Negative DC power supply) is available for purchase if you want to use the 5U version as a stand alone device. We have also fixed the clocking issue with a new mod board (clocking was happening on the fall of the cycle) which is included in every kit or complete version if purchased after June 15th 2014.  Also on our Mod board are 6 different power connectors, allowing the VOS Sequencer 5U version to fit in almost any 5U system.  If you have purchased a version that did not come with the mod, it can be purchased separately HERE. Mod Board Power Connectors: 1. MOTM 4 Pin 2. MOTM 6 Pin 3. Modcan 4. Synthesizers.com 5. 2.1mm DC Jack (9v center negative adapter) 6. 9V Battery Clip Features / Specs:

• 10 steps, sequence can be shortened by connecting 1/8″ cable from step to reset jack
• Voltage Out from 0 to ~7.5V
• Gate out and S-Trigger out for older Moogs
• Clock input / output to connect multiple sequencers ( for sync’ing, not extending sequence)
• Hold Switch pauses sequence, manually steps when clock is off 9V Battery or Power Supply (center negative)

Check it out in action here:   Extra Documents:

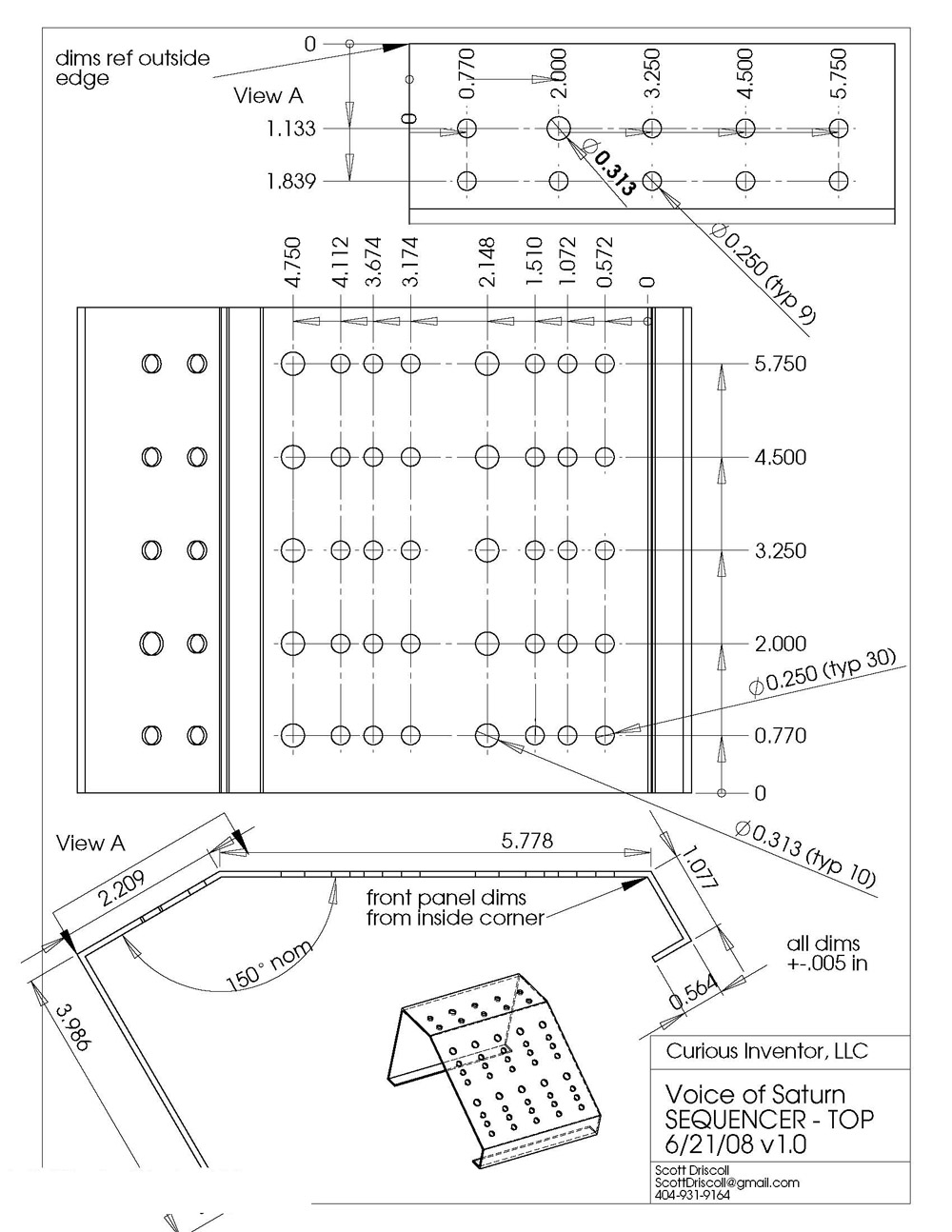

Voice of Saturn Sequencer Case Template
