Synthrotek ‘COMBINE-OR’ Eurorack Module

Combine-OR Kit

Combine-OR Kit

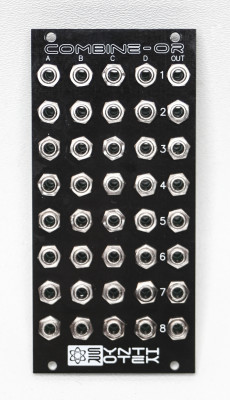

Combine-OR Eurorack Module

Combine-OR Eurorack Module

Need more OR?  The Combine-OR is an 8 channel OR-Combiner with 4-inputs and 1-output per channel.

The Combine-OR allows the user to combine gates, triggers and other logic signals into a single combined OR output.

There are 8 numbered rows that can be daisy-chained in order to input many multiple logic sources, resulting in complex gate or trigger outputs.

This is a passive module and thus does not need a voltage connection or power cable.  The passive diodes produce a slight voltage drop between the input and the output of each channel. As a gate combiner it will combine 2 to 4 gate inputs to produce an OR function on the output. When combining CVs the highest positive input will appear at the output with about 0.7 volts of drop.

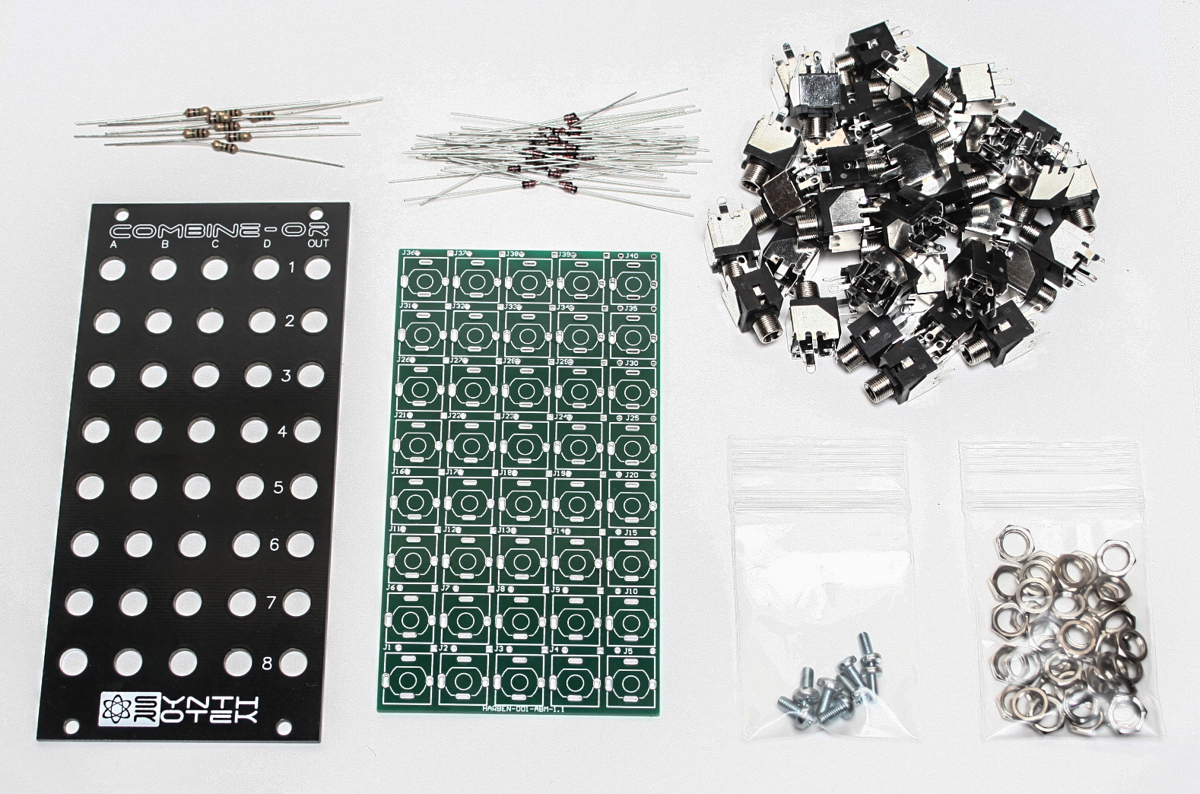

The Combine-OR is available as a fully assembled module or in kit form.  This kit can also be used to make an 8-channel 1 to 4 passive mult

Specs:

1. 12HP

2. Power Consumption:  0 mA

2. Module Depth: Approx. 5/8 inches
