CF Assembly Instructions

Thank you for purchasing the Synthrotek CF cross fader kit! This is an simple build but only proceed If you feel like you can handle it.  If not, get some help from a friend with experience or purchase a fully completed unit.

Please build according to the BOMand not these instructions or the pictures alone. Some components may have changed since these were written, or we may not be able to get the exact looking components in the pictures.

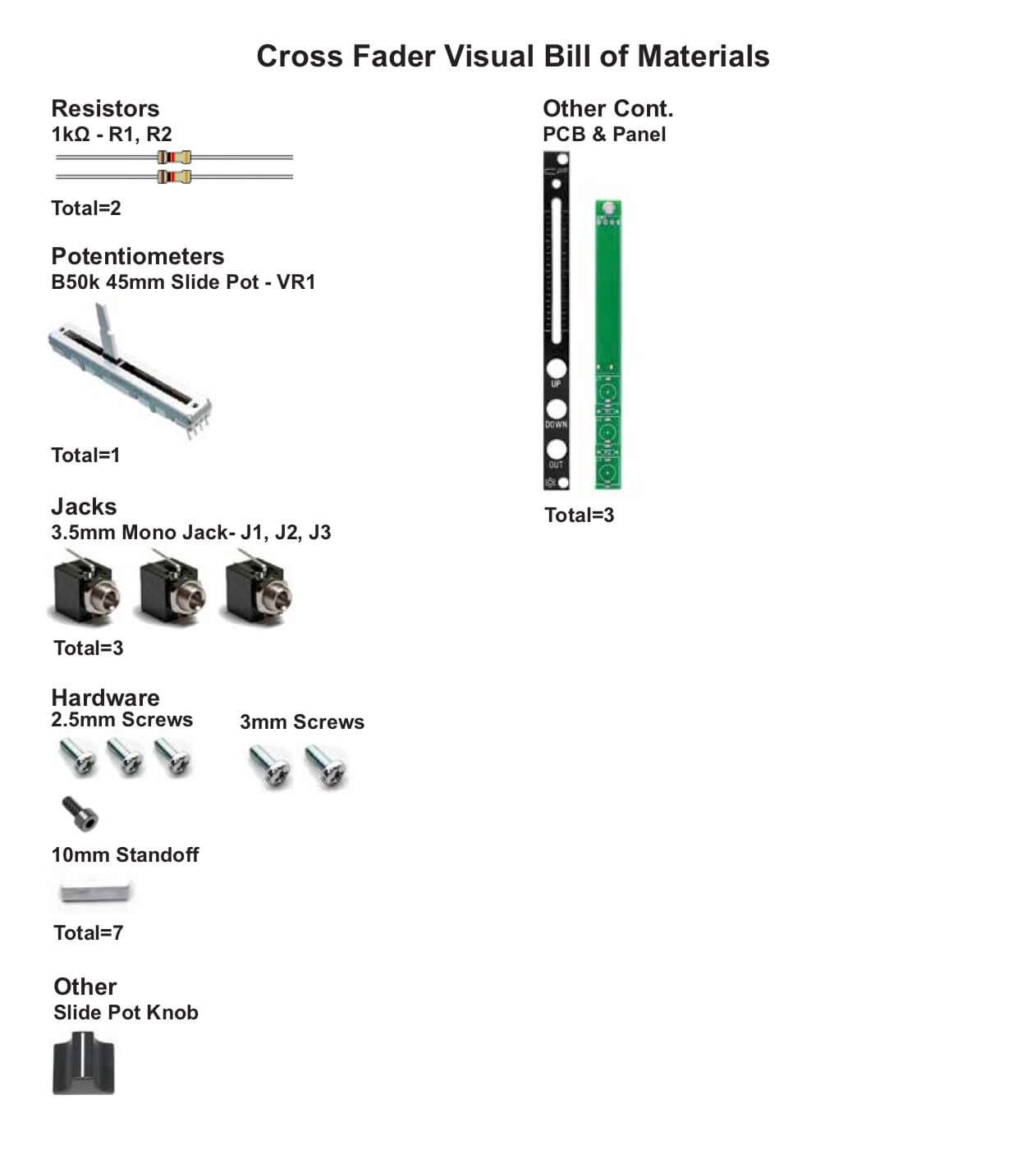

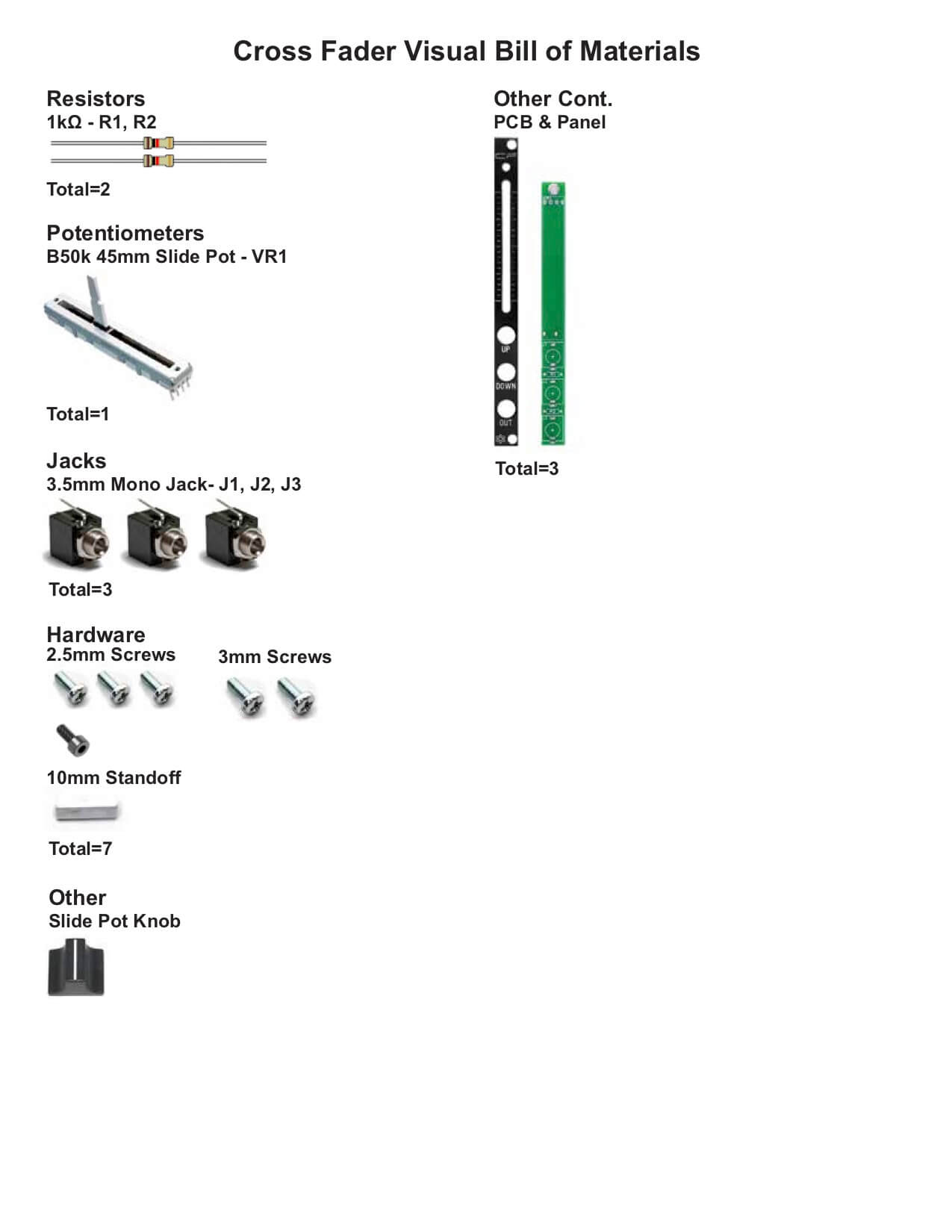

Synthrotek CF Visual BOM

For a BOM with Mouser part numbers, click here.



Cross Fader 2HP Eurorack Kit

Cross Fader 2HP Eurorack Kit

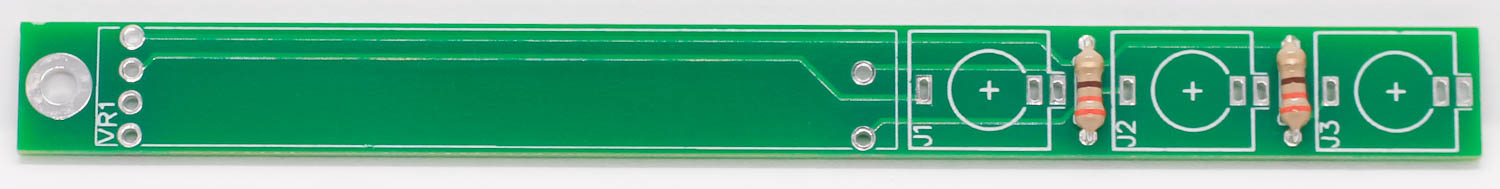

RESISTORS

Place the two resistors into the PCB, turn over to solder and then clip excess leads.

CF 2HP Crossfader resistors

CF 2HP Crossfader resistors

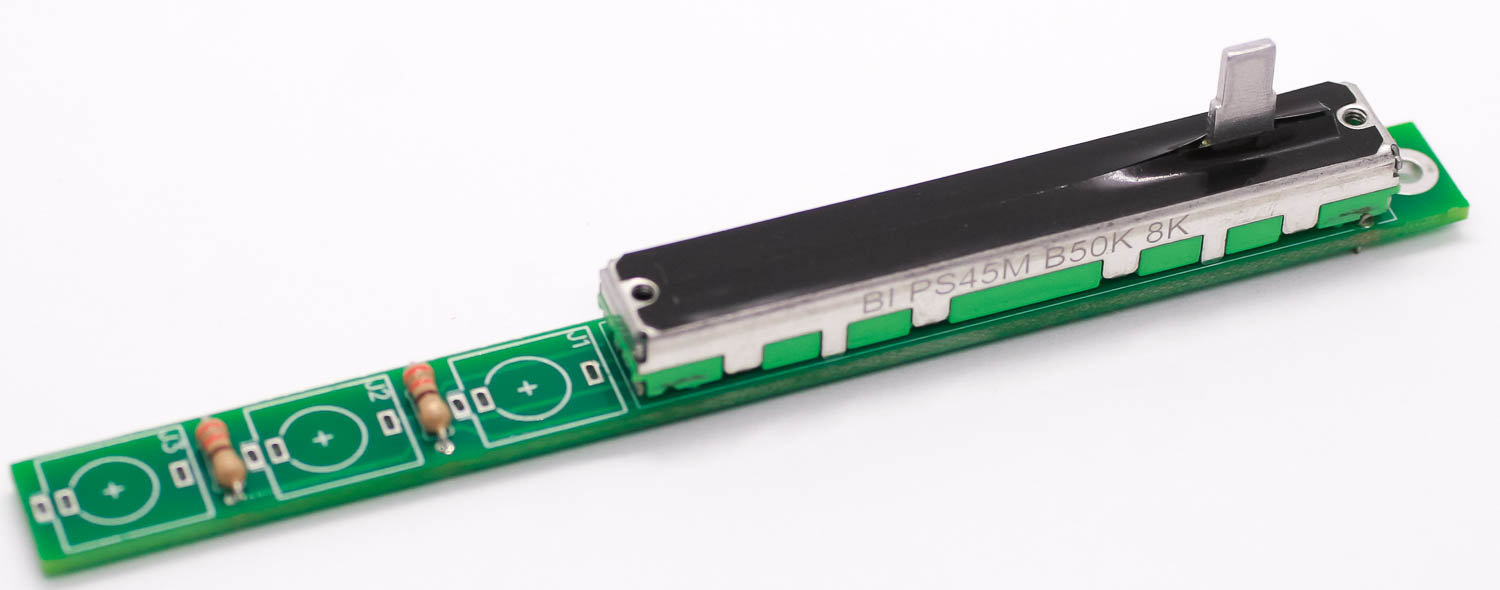

SLIDE POTENTIOMETER

Place the slide pot into the PCB as shown below, carefully turn over and solder in place.

CF 2HP Slide Pot

CF 2HP Slide Pot

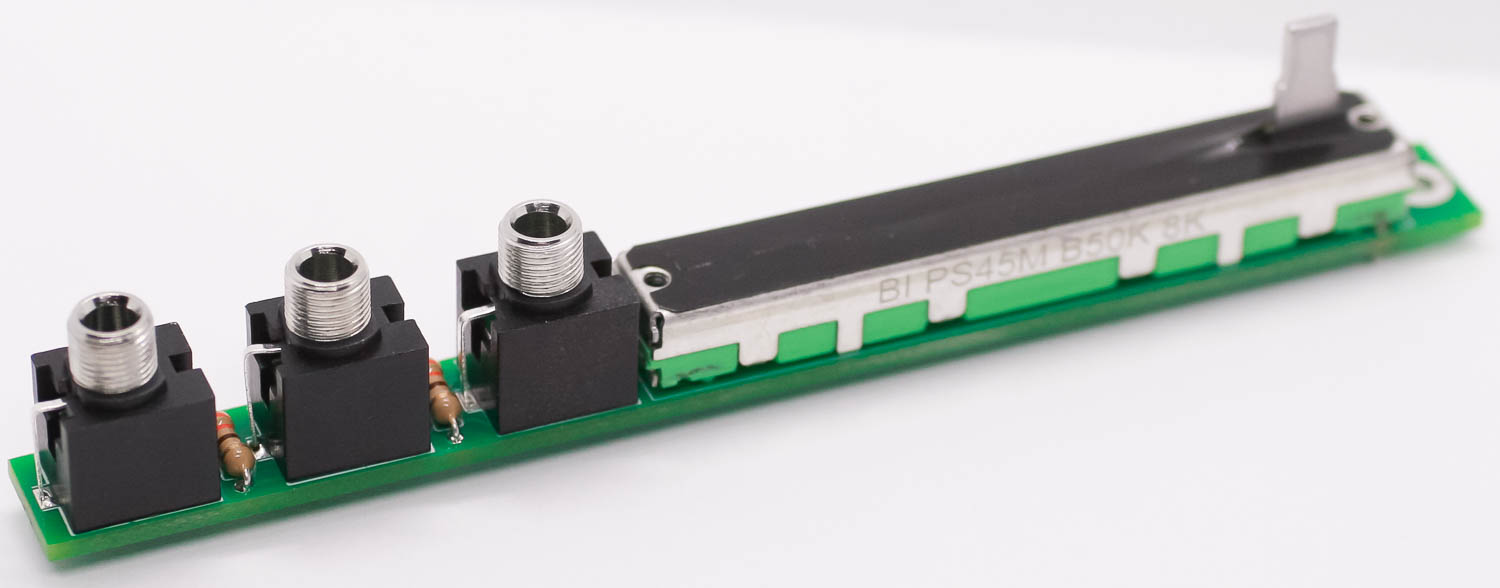

JACKS

Place the jacks into the PCB as shown below, carefully turn over and solder in place.

2HP Eurorack Cross Fader Jacks

2HP Eurorack Cross Fader Jacks

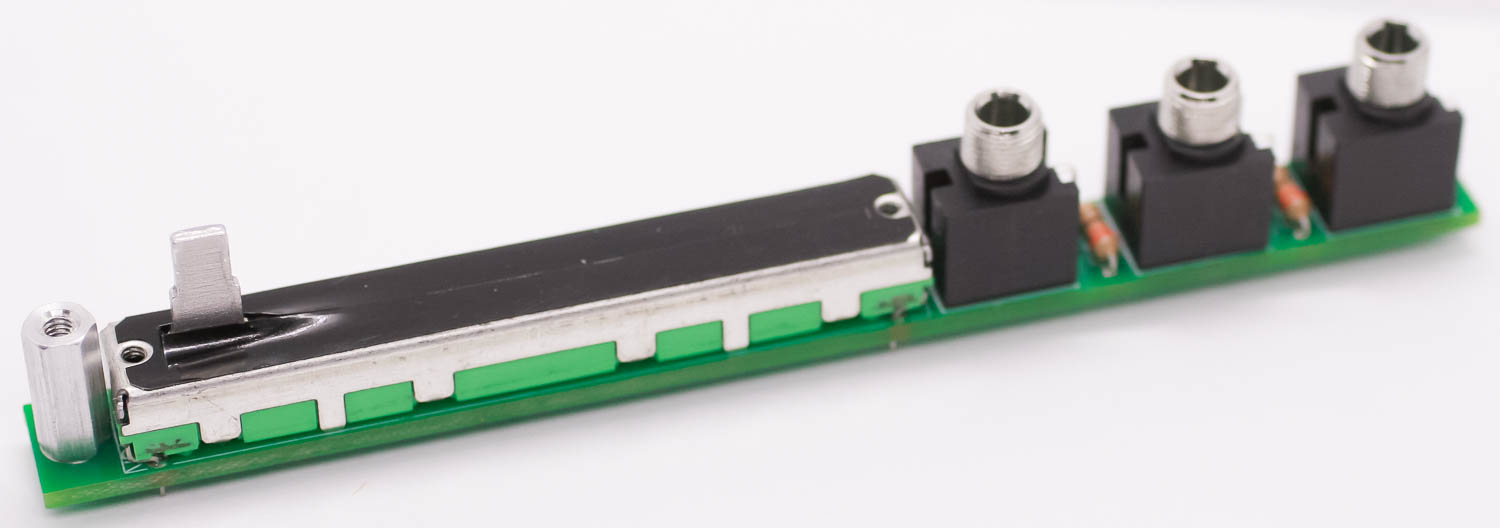

STANDOFF

Take the silver colored screw and attach the standoff to the PCB as shown below.

2HP Crossfader Eurorack standoff

2HP Crossfader Eurorack standoff

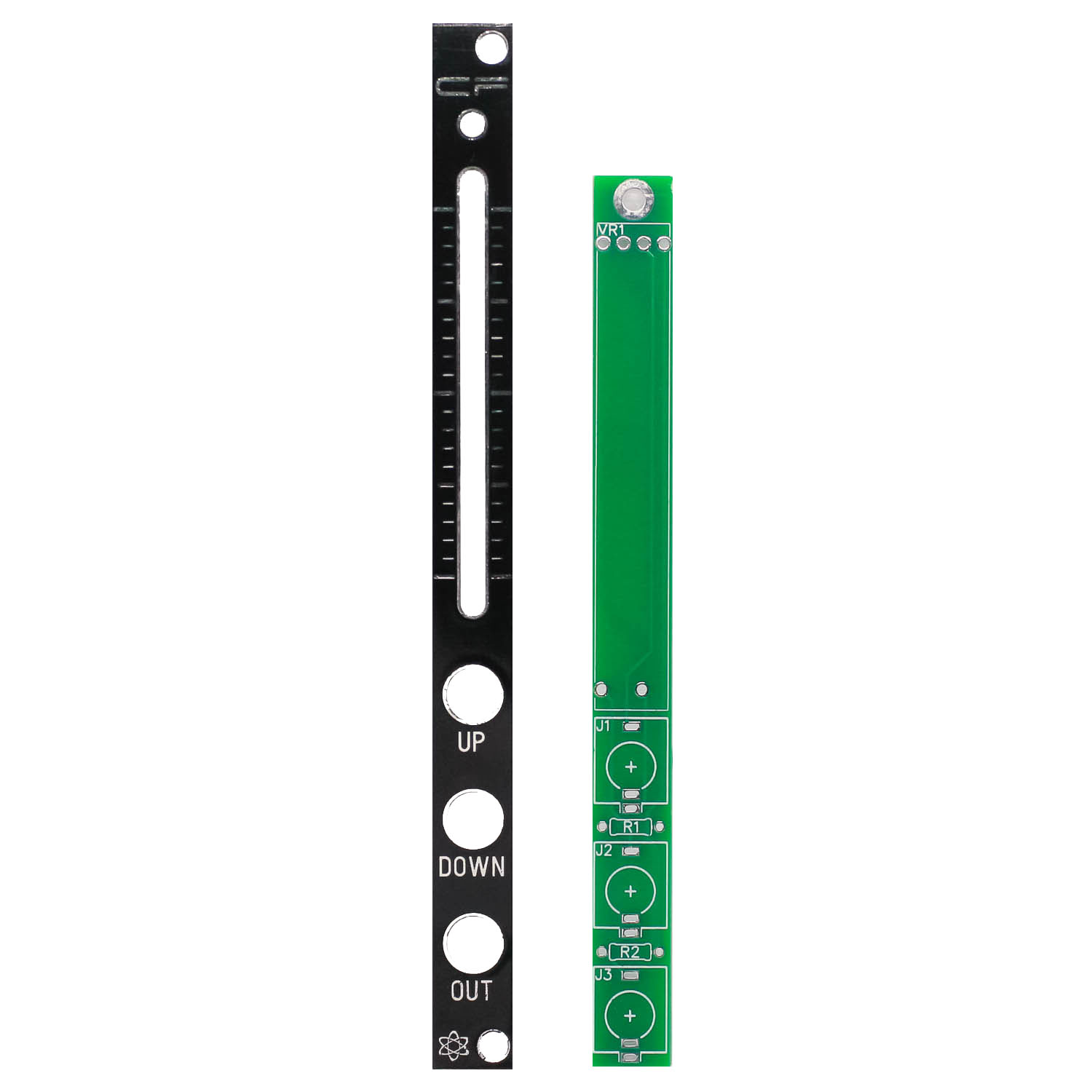

Front Panel

Place the front panel over the jacks and slide pot. Secure it with the jack nuts and black screw as shown below.

2HP Eurorack Crossfader Panel

2HP Eurorack Crossfader Panel

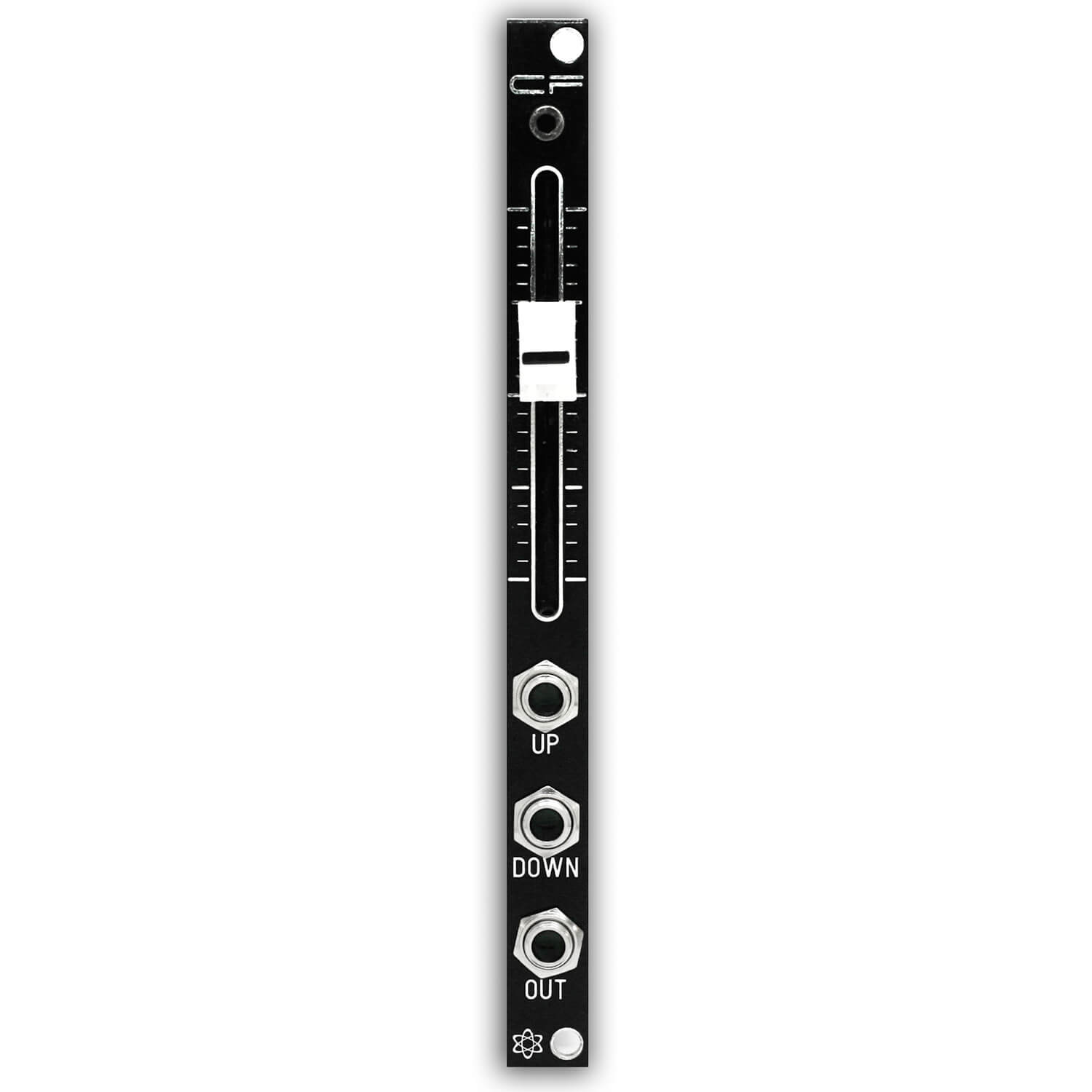

Final Project!

You can now add the slide pot knob and you are ready to crossfade!

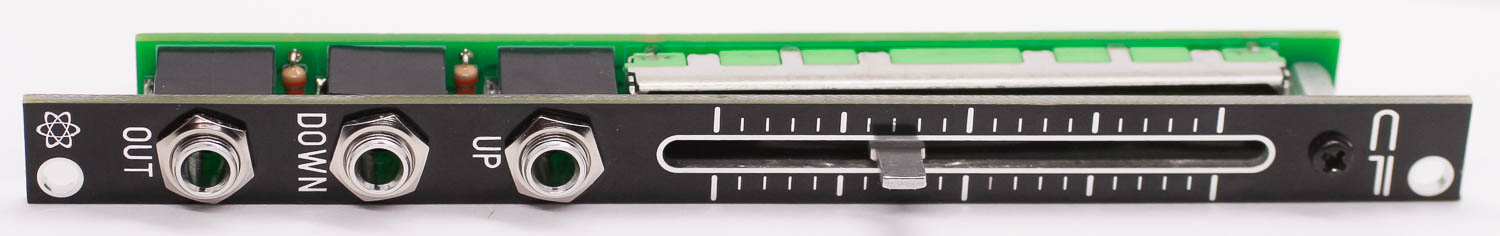

2HP Eurorack Crossfader Module Complete

2HP Eurorack Crossfader Module Complete
