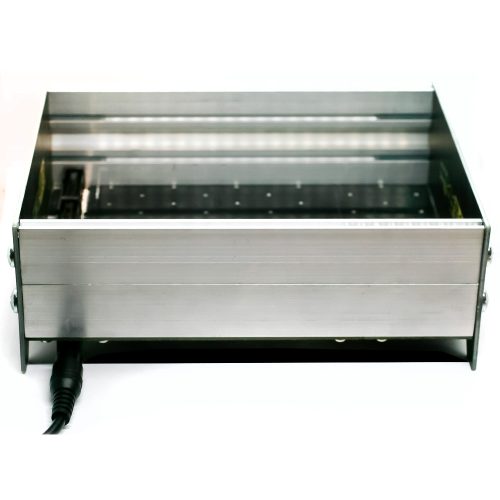

Skiff Power is an inexpensive power supply for cases both small and large. Designed to be used with the Eco skiff system, it can be used in a myriad of other DIY power supply options.
Daisy chain Skiff Power circuits together, making it a simple desktop power solution with only one power brick.
Power output:
- +12V @ 2A
- -12V @300mA or 750mA
- 5V@ 150mA
Features and specifications:
- Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
- Built in bus board with 15 power connections
- Daisy chains to an EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC
-
Dimensions: 3U 20HP (101 x 128mm)
The Skiff Power Mini is a tiny power supply that can mount to your rack! Designed for the EcoSkiff, the Skiff Power Mini can be used in any rack.
Need more power connections? Add flying bus cables to accomodate!
Features and specifications:
- Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
- Built in bus board with 15 power connections
- Dimensions: 3U 4HP (20 x 128mm)
Power output:
- Skiff Power Mini:
- +12V: 1A
- -12V: 750mA
- +5V: 150mA
- Skiff Power Mini Lite:
- +12V: 1A
- -12V: 300mA
- +5V: 150mA
Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
