The Synthrotek 8 Step Sequencer is a key element in any synth rig! Turn your static synth into a dynamic and musical instrument.

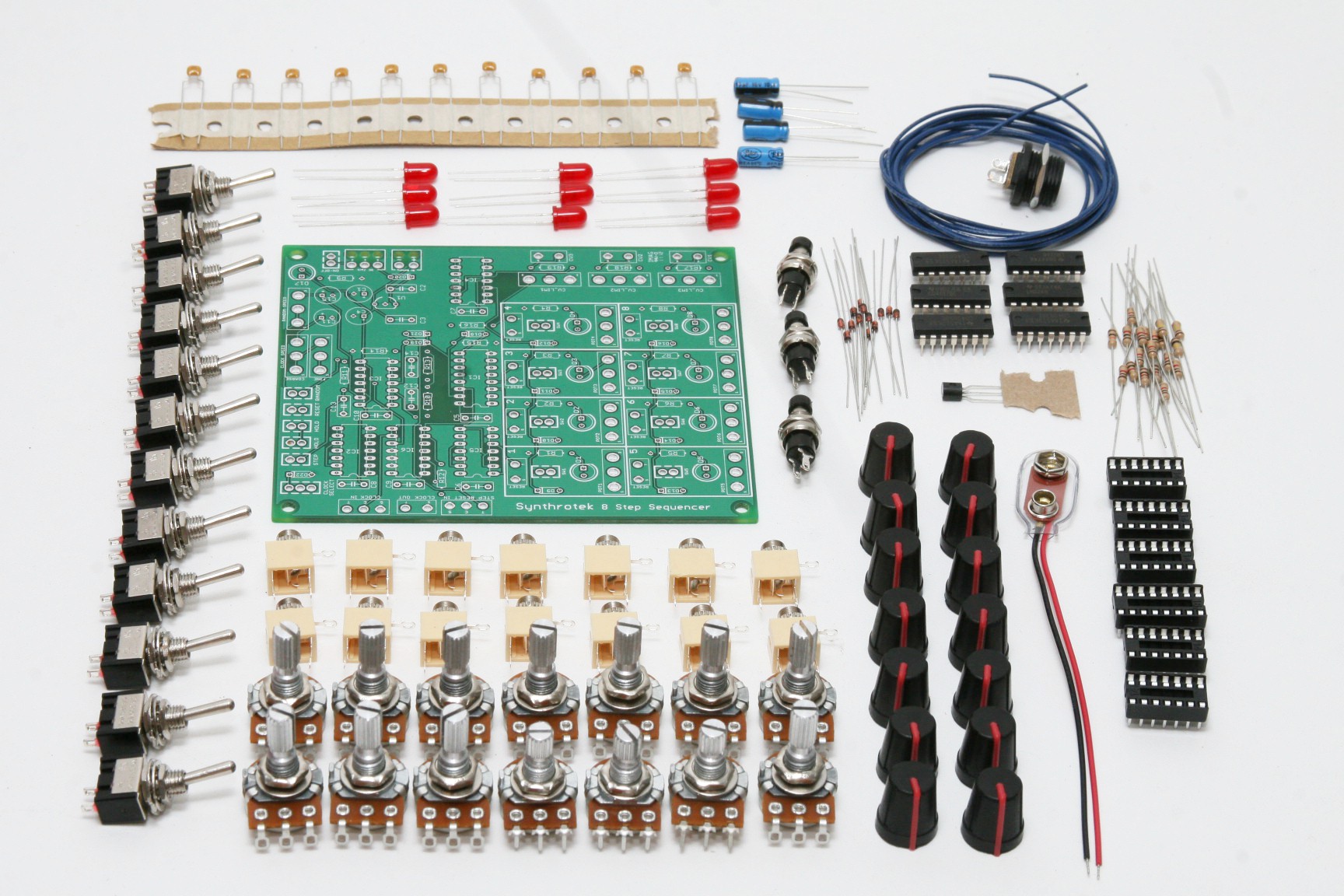

The picture above is our complete kit with everything you could possibly need except a case.  Stop by the store to check out some of our other 8 step options.

Features:

  • 8 adjustable steps with toggle switches and LED indication
  • Sequence length can be adjusted from 1-8 steps with modular-style jack inputs. Reset button sets the sequence immediately to the beginning.
  • 3 CV (Control Voltage) outputs allow for multiple synthesizer synchronization with independent threshold adjustment from 0-9V.
  • Clock IN/OUT to sync with other sequencers or clock-generating sources
  • – Momentary and Hard (Stop) Hold function to pause your sequence. Step function allows you to manually advance your sequence or adjust each step for precise CV output
  • Dual Clock Speed Controls (Coarse and Fine) gives users the ability to match the tempo for playing live or in the studio!
  • Knobs and Switches – get your hands on it!
  • Powered by 9V Battery or 12VDC Center Negative AC Adapter
