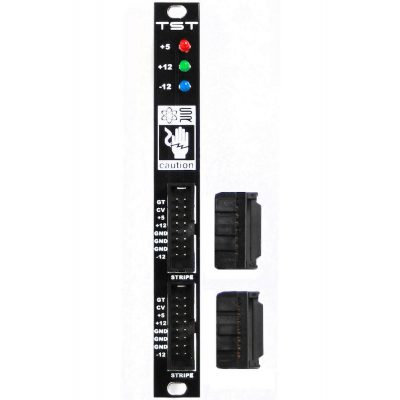

Test your modules safely without reaching into your case! The TST has two keyed 16-pin headers on the front of the module so you can plug and unplug quickly and easily. Two 16-pin plugs are included to shield the power pins when the module is not in use. It also has LEDs to indicate the power status on each rail.

Please note: Use this module at your own risk. You will be exposing electricity to the front of your modular system. Be careful not to dangle patch-cables, etc. on the exposed pins.  This may damage modules and your power supply.  Be smart and safe!

Features and Specifications:

  • Two 16-pin connectors and plugs on the front side of the module
  • LED indicator for each rail
  • Module width: 3HP
  • Module depth: 5mm
  • Current draw:
    • +12V: 1mA
    • -12V: 1mA
    • +5V: 1mA
  • Includes keyed power cable, 2.5mm and 3mm screws
